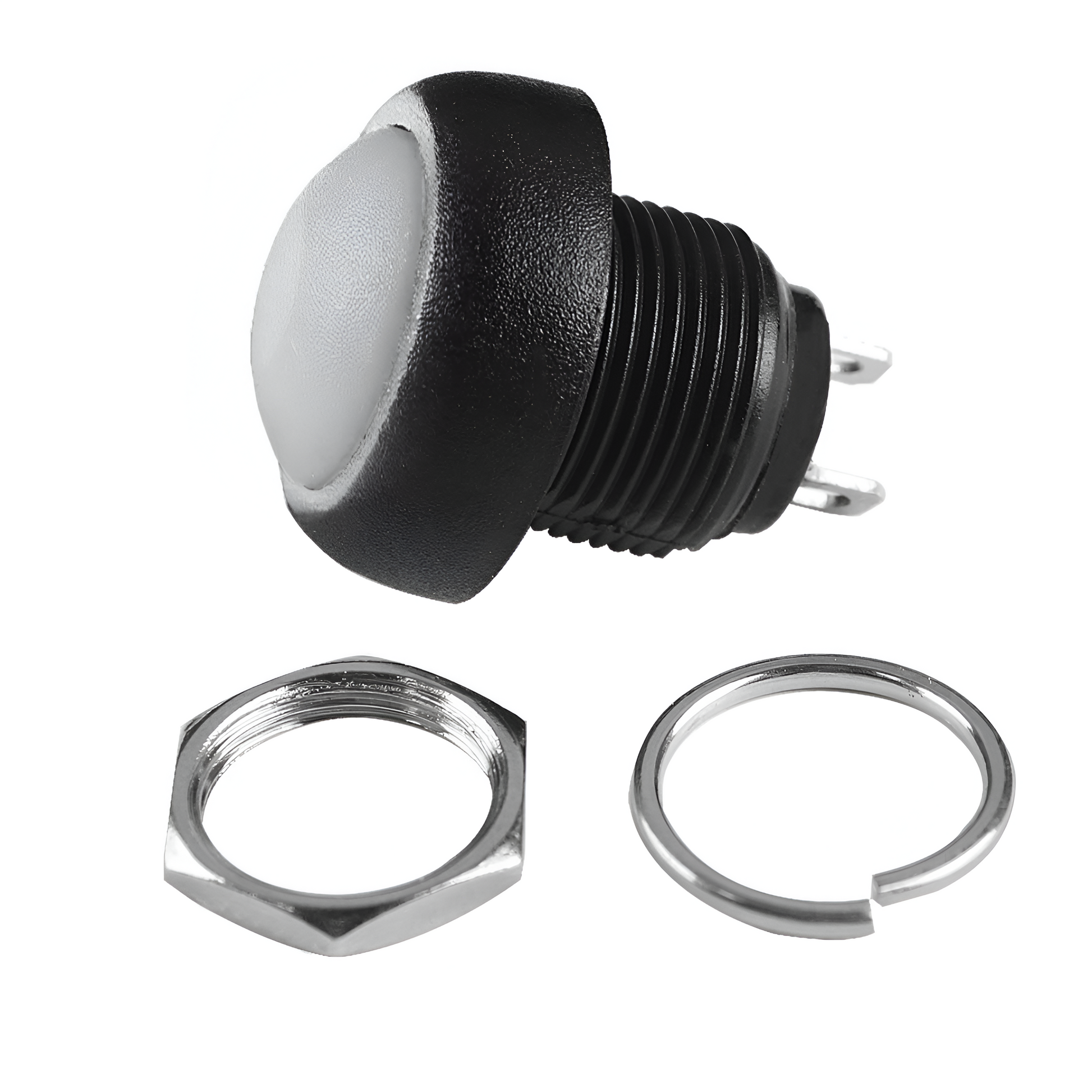

12mm Momentary Push Button - White

This is pretty straight forward panel mount momentary push button. White color top cap (where you push). Two terminals which you can extend with wires to machine or controller. This is normally open switch, both terminals will shorted and closed if the cap is pressed.

• Normally Open Momentary Push Button
• White color cap
• No LED or bulb
• Panel mount type with diameter of 12.0 mm

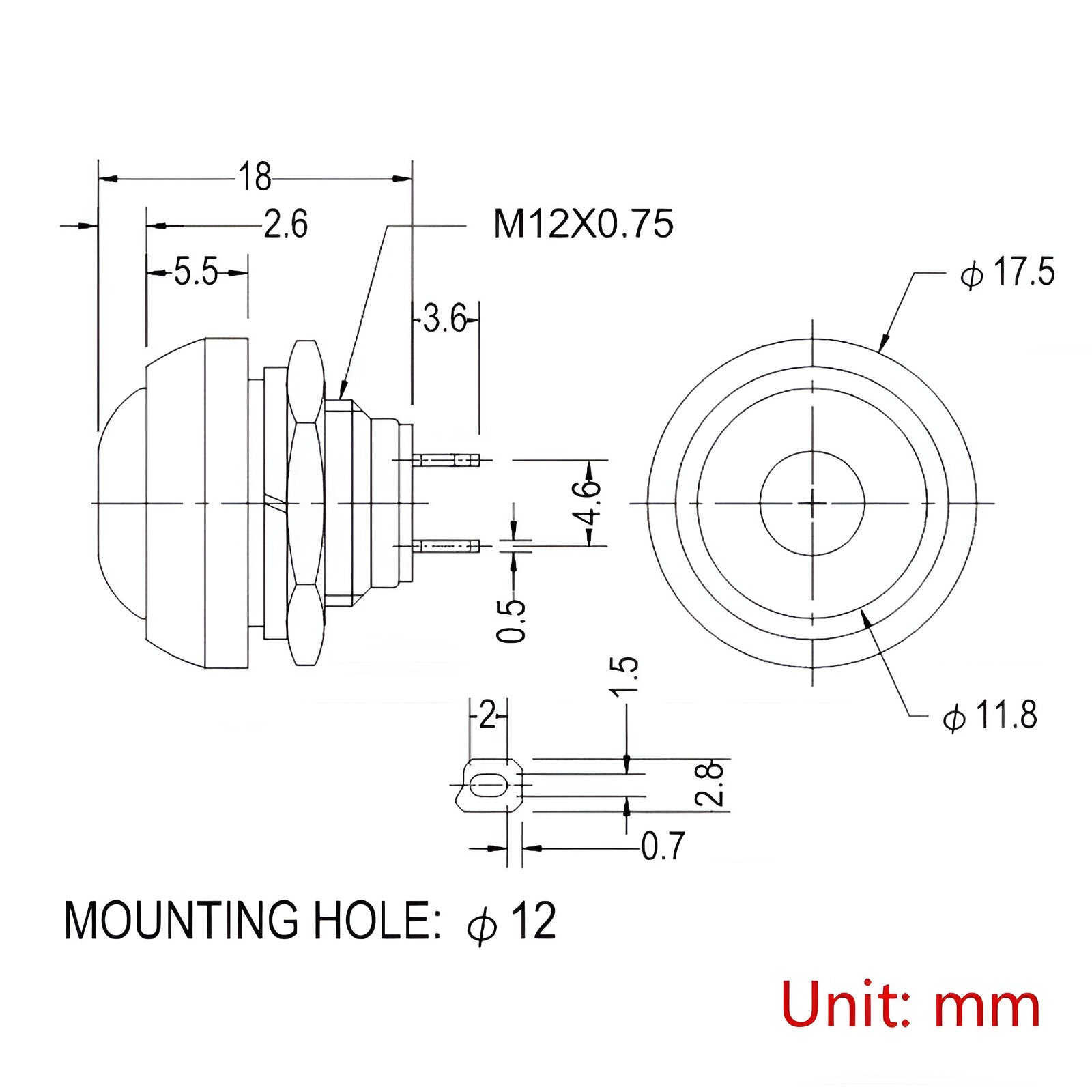

• Dimension: 21.6 mm x 17.5mm x 17.5mm (include terminal)
• Shaft/Mounting hole: 12.0 mm (diameter) x 7.5mm (length)
• Comes with mounting screw and washer
